Extraction accuracy — NSF Award Notice Extraction (UDM)

Source: evals/reports/2026-04-20-vandalizer-crossref/REPORT.md. Component: nsf-award-notice-extraction-udm.

Generated: 2026-04-20T20:32:54Z
Ground-truth corpus: 20 distinct (award, amendment) cases at real/nsf_awards/extractions
Headline run (json_schema): matched 24 source docs (0 validated, 24 in progress)
Schema: components/nsf-award-notice-extraction-udm/schema.json

Ground-truth source. Cases marked validated are human-verified extractions used as truth. Cases marked in_progress are awaiting human verification — the reference values come from an automated second-opinion pipeline, so they serve as an agreement signal rather than an accuracy signal. Validation state is tracked in per-case metadata.yaml and partitioned below.

1. Headline — accuracy on validated cases

No cases have completed human validation yet. Every case currently falls into the in-progress partition in §2. As you validate cases (flip validation_state: validated in their metadata.yaml), they will appear here.

2. Pending validation — agreement on in-progress cases

These 24 cases are still awaiting human verification. Numbers below measure agreement with the automated reference pipeline, not accuracy. Use them to spot candidate-for-review items — where the extractor and the reference differ, one of them is wrong.

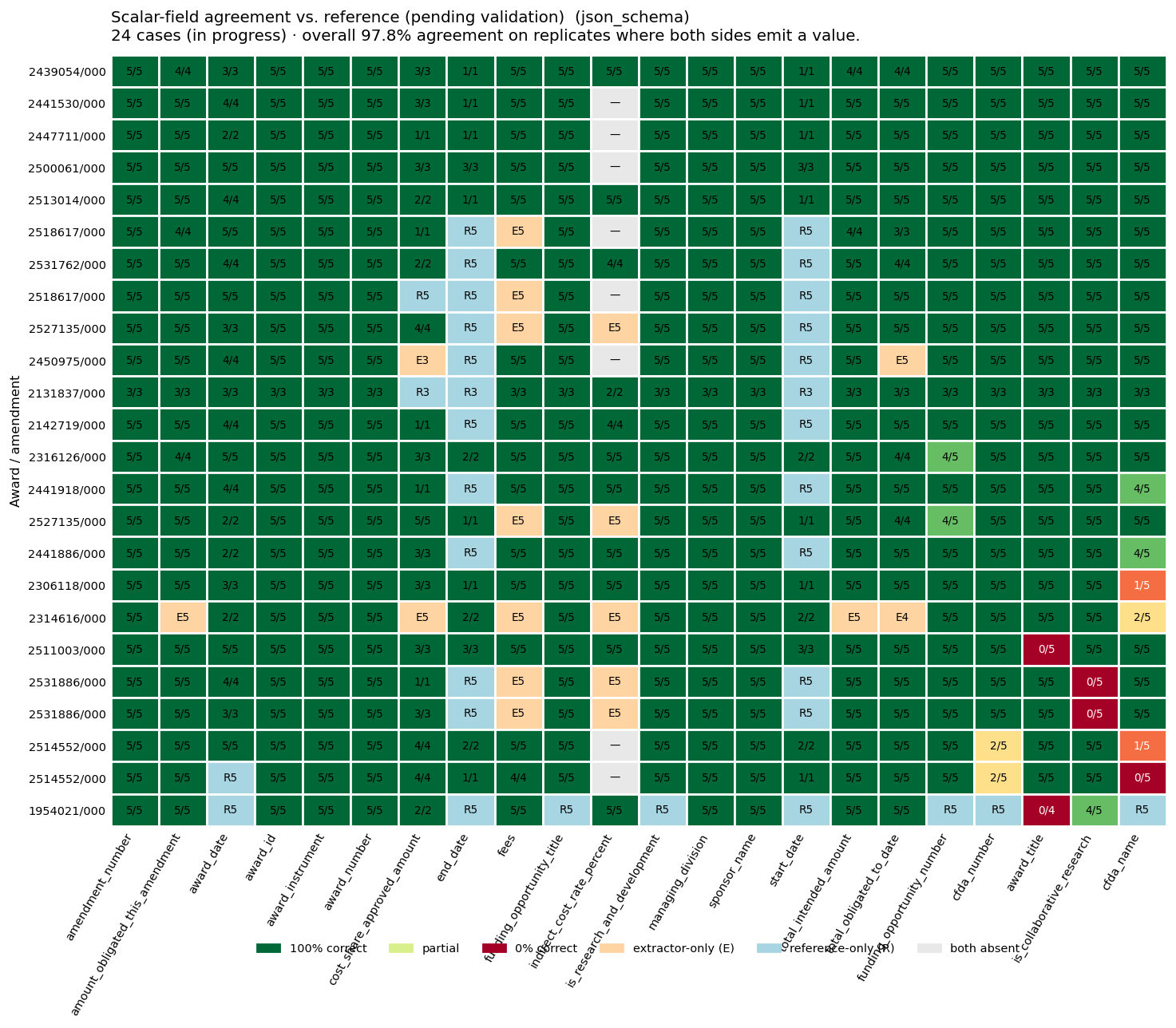

Scalar fields

24 in-progress cases · overall 97.8% agreement (2088/2134 replicate-field pairs).

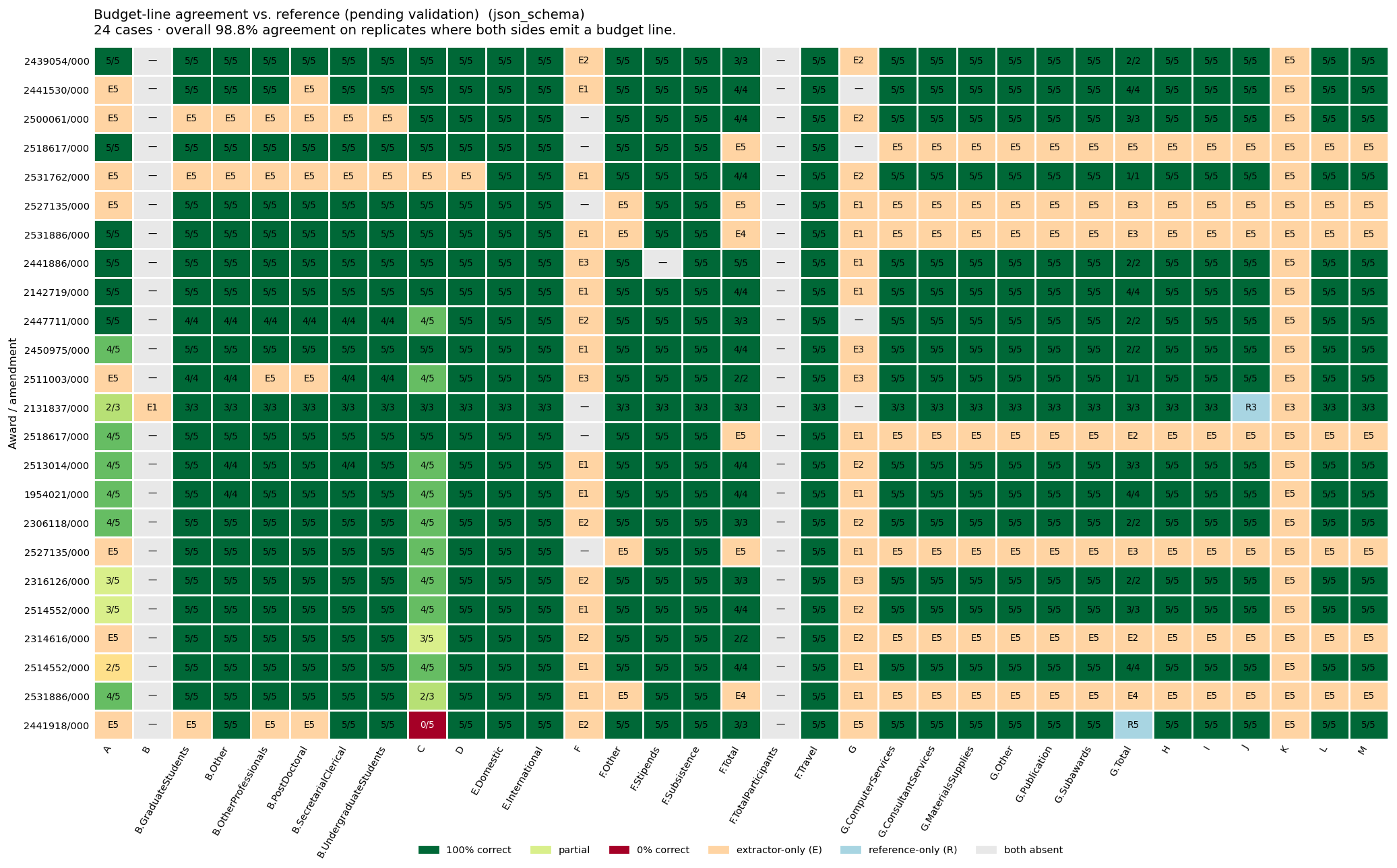

Budget line items

Overall 98.8% budget-line agreement (2574/2605 replicate-slot pairs).

3. Headline by run mode

run / mode	matched cases	scalar compared / correct	scalar accuracy	budget compared / correct	budget accuracy
none	24 of 28 source docs (0 validated, 24 in progress)	1848 / 1900	97.3%	2578 / 2660	96.9%
json_object	24 of 28 source docs (0 validated, 24 in progress)	1916 / 1952	98.2%	2615 / 2658	98.4%
json_schema	24 of 28 source docs (0 validated, 24 in progress)	2088 / 2134	97.8%	2574 / 2605	98.8%

4. Incorrect-extraction examples — json_schema

Up to 5 examples per field where the extractor produced a value different from the reference. Includes both validated (definite errors) and in-progress (candidate errors) cases.

cfda_name — 84% (95/113)

award	truth	extractor	truth raw	extractor raw
2441918	engineering grants (predominant source of funding for sefa reporting)	engineering grants (predominant source for sefa reporting)	Engineering Grants (Predominant source of funding for SEFA r	Engineering Grants (Predominant source for SEFA reporting)
2514552	geosciences (predominant source of funding for sefa reporting), 47.076 education and human resources	geosciences (predominant source of funding for sefa reporting); education and human resources	Geosciences (Predominant source of funding for SEFA reportin	Geosciences (Predominant source of funding for SEFA reportin
2514552	geosciences (predominant source of funding for sefa reporting), 47.076 education and human resources	geosciences (predominant source of funding for sefa reporting)	Geosciences (Predominant source of funding for SEFA reportin	Geosciences (Predominant source of funding for SEFA reportin
2514552	geosciences (predominant source of funding for sefa reporting), 47.076 education and human resources	geosciences (predominant source of funding for sefa reporting); education and human resources	Geosciences (Predominant source of funding for SEFA reportin	Geosciences (Predominant source of funding for SEFA reportin
2514552	geosciences (predominant source of funding for sefa reporting), 47.076 education and human resources	geosciences (predominant source of funding for sefa reporting); education and human resources	Geosciences (Predominant source of funding for SEFA reportin	Geosciences (Predominant source of funding for SEFA reportin

is_collaborative_research — 91% (107/118)

award	truth	extractor	truth raw	extractor raw
2531886	False	True	False	True
2531886	False	True	False	True
2531886	False	True	False	True
2531886	False	True	False	True
2531886	False	True	False	True

award_title — 92% (108/117)

award	truth	extractor	truth raw	extractor raw
2511003	equipment: mri: track 1 acquisition of element aviti system to enable multi-omics research and research training.	equipment: mri: track 1 acquisition of element a viti system to enable multi-omics research and research training	Equipment: MRI: Track 1 Acquisition of Element AVITI System	Equipment: MRI: Track 1 Acquisition of Element A VITI System
2511003	equipment: mri: track 1 acquisition of element aviti system to enable multi-omics research and research training.	equipment: mri: track 1 acquisition of element a viti system to enable multi-omics research and research training	Equipment: MRI: Track 1 Acquisition of Element AVITI System	Equipment: MRI: Track 1 Acquisition of Element A VITI System
2511003	equipment: mri: track 1 acquisition of element aviti system to enable multi-omics research and research training.	equipment: mri: track 1 acquisition of element a viti system to enable multi-omics research and research training	Equipment: MRI: Track 1 Acquisition of Element AVITI System	Equipment: MRI: Track 1 Acquisition of Element A VITI System
2511003	equipment: mri: track 1 acquisition of element aviti system to enable multi-omics research and research training.	equipment: mri: track 1 acquisition of element a viti system to enable multi-omics research and research training	Equipment: MRI: Track 1 Acquisition of Element AVITI System	Equipment: MRI: Track 1 Acquisition of Element A VITI System
2511003	equipment: mri: track 1 acquisition of element aviti system to enable multi-omics research and research training.	equipment: mri: track 1 acquisition of element a viti system to enable multi-omics research and research training	Equipment: MRI: Track 1 Acquisition of Element AVITI System	Equipment: MRI: Track 1 Acquisition of Element A VITI System

cfda_number — 95% (107/113)

award	truth	extractor	truth raw	extractor raw
2514552	47.050	47.050, 47.076	47.050	47.050, 47.076
2514552	47.050	47.050; 47.076	47.050	47.050; 47.076
2514552	47.050	47.050, 47.076	47.050	47.050, 47.076
2514552	47.050	47.050, 47.076	47.050	47.050, 47.076
2514552	47.050	47.050; 47.076	47.050	47.050; 47.076

funding_opportunity_number — 98% (111/113)

award	truth	extractor	truth raw	extractor raw
2527135	nsf 25-509	25-509	NSF 25-509	25-509
2316126	nsf 22-633	22-633	NSF 22-633	22-633

5. Appendix — per-field rollup tables across modes

Scalar field accuracy/agreement by mode

| field | `none` | `json_object` | `json_schema` | |---|---|---|---| | `sponsor_award_number` | — | — | — | | `award_status` | — | — | — | | `proposal_number` | — | — | — | | `amendment_type` | — | — | — | | `amendment_date` | — | — | — | | `amendment_description` | — | — | — | | `award_received_date` | — | — | — | | `start_date` | — | — | 100% (19/19) | | `end_date` | — | — | 100% (19/19) | | `total_intended_amount` | — | — | 100% (111/111) | | `expenditure_limitation` | — | — | — | | `indirect_cost_base` | — | — | — | | `fees` | — | 100% (85/85) | 100% (82/82) | | `cfda_name` | 84% (96/115) | 87% (100/115) | 84% (95/113) | | `cfda_number` | 90% (103/115) | 96% (110/115) | 95% (107/113) | | `is_collaborative_research` | 91% (109/120) | 92% (110/120) | 91% (107/118) | | `award_title` | 96% (110/115) | 96% (110/115) | 92% (108/117) | | `funding_opportunity_number` | 96% (110/115) | 99% (114/115) | 98% (111/113) | | `award_id` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `award_number` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `sponsor_name` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `managing_division` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `award_instrument` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `is_research_and_development` | 100% (115/115) | 100% (115/115) | 100% (113/113) | | `funding_opportunity_title` | 100% (115/115) | 100% (115/115) | 100% (113/113) | | `amendment_number` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `award_date` | 100% (92/92) | 100% (77/77) | 100% (81/81) | | `amount_obligated_this_amendment` | 100% (115/115) | 100% (115/115) | 100% (110/110) | | `total_obligated_to_date` | 100% (2/2) | 100% (2/2) | 100% (102/102) | | `cost_share_approved_amount` | 100% (106/106) | 100% (88/88) | 100% (52/52) | | `indirect_cost_rate_percent` | 100% (55/55) | 100% (55/55) | 100% (50/50) |

One-sided emissions (coverage asymmetry)

Extractor emitted a value where truth/reference has null (**hallucinated**) vs. truth/reference has a value the extractor emitted as null (**missing**). Per mode. | field | `none` halluc. / missing | `json_object` halluc. / missing | `json_schema` halluc. / missing | |---|---|---|---| | `sponsor_award_number` | — | — | — | | `award_status` | — | — | — | | `proposal_number` | — | — | — | | `amendment_type` | 120 / 0 | 120 / 0 | 118 / 0 | | `amendment_date` | 20 / 0 | 9 / 0 | — | | `amendment_description` | 120 / 0 | 120 / 0 | 118 / 0 | | `award_received_date` | 20 / 0 | 20 / 0 | 20 / 0 | | `start_date` | 0 / 120 | 0 / 120 | 0 / 99 | | `end_date` | 0 / 120 | 0 / 120 | 0 / 99 | | `total_intended_amount` | 0 / 115 | 0 / 115 | 5 / 2 | | `expenditure_limitation` | — | — | 1 / 0 | | `indirect_cost_base` | 114 / 0 | 113 / 0 | 103 / 0 | | `fees` | 0 / 85 | 35 / 0 | 35 / 1 | | `cfda_name` | 0 / 5 | 0 / 5 | 0 / 5 | | `cfda_number` | 0 / 5 | 0 / 5 | 0 / 5 | | `is_collaborative_research` | 0 / 0 | 0 / 0 | 0 / 0 | | `award_title` | 0 / 5 | 0 / 5 | 0 / 1 | | `funding_opportunity_number` | 0 / 5 | 0 / 5 | 0 / 5 | | `award_id` | 0 / 0 | 0 / 0 | 0 / 0 | | `award_number` | 0 / 0 | 0 / 0 | 0 / 0 | | `sponsor_name` | 0 / 0 | 0 / 0 | 0 / 0 | | `managing_division` | 0 / 0 | 0 / 0 | 0 / 0 | | `award_instrument` | 0 / 0 | 0 / 0 | 0 / 0 | | `is_research_and_development` | 0 / 5 | 0 / 5 | 0 / 5 | | `funding_opportunity_title` | 0 / 5 | 0 / 5 | 0 / 5 | | `amendment_number` | 0 / 0 | 0 / 0 | 0 / 0 | | `award_date` | 0 / 28 | 0 / 43 | 0 / 37 | | `amount_obligated_this_amendment` | 5 / 0 | 5 / 0 | 5 / 3 | | `total_obligated_to_date` | 0 / 108 | 0 / 108 | 9 / 6 | | `cost_share_approved_amount` | 10 / 4 | 7 / 22 | 8 / 56 | | `indirect_cost_rate_percent` | 25 / 0 | 25 / 0 | 25 / 3 |

Budget-line accuracy/agreement by mode

Rows are NSF-format `code.subcode` slots. Columns show **correct / compared** replicate-slot pairs per mode. | slot | `none` | `json_object` | `json_schema` | |---|---|---|---| | `A` | 60% (48/80) | 79% (63/80) | 82% (64/78) | | `B` | — | — | — | | `B.GraduateStudents` | 100% (103/103) | 100% (105/105) | 100% (101/101) | | `B.Other` | 100% (107/107) | 100% (107/107) | 100% (104/104) | | `B.OtherProfessionals` | 100% (98/98) | 100% (100/100) | 100% (97/97) | | `B.PostDoctoral` | 100% (93/93) | 100% (95/95) | 100% (92/92) | | `B.SecretarialClerical` | 100% (108/108) | 100% (108/108) | 100% (105/105) | | `B.UndergraduateStudents` | 100% (108/108) | 100% (110/110) | 100% (106/106) | | `C` | 56% (65/115) | 77% (88/114) | 85% (94/111) | | `D` | 100% (115/115) | 100% (115/115) | 100% (113/113) | | `E.Domestic` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `E.International` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `F` | — | — | — | | `F.Other` | 100% (100/100) | 100% (100/100) | 100% (98/98) | | `F.Stipends` | 100% (115/115) | 100% (115/115) | 100% (113/113) | | `F.Subsistence` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `F.Total` | 100% (62/62) | 100% (57/57) | 100% (63/63) | | `F.Travel` | 100% (120/120) | 100% (120/120) | 100% (118/118) | | `G` | — | — | — | | `G.ComputerServices` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `G.ConsultantServices` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `G.MaterialsSupplies` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `G.Other` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `G.Publication` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `G.Subawards` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `G.Total` | 100% (46/46) | 100% (42/42) | 100% (42/42) | | `H` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `I` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `J` | 100% (80/80) | 100% (80/80) | 100% (80/80) | | `K` | — | — | — | | `L` | 100% (85/85) | 100% (85/85) | 100% (83/83) | | `M` | 100% (85/85) | 100% (85/85) | 100% (83/83) |

Methodology

• Matching. Source documents are matched to ground-truth cases by the tuple (award_number, amendment_number), majority-voted across replicates. This matters for amendment series: three source documents may share an award_number but represent the base award, Mod 1, and Mod 2 respectively.
• Validation partition. Each ground-truth case carries a sibling <results-N>.meta.yaml file with validation_state: validated | in_progress. Validated cases feed the §1 headline; in-progress cases feed the §2 appendix. As cases are validated, they migrate from §2 to §1 without any code change.
• Scoring. Every (award × field × replicate) tuple is assigned exactly one of: correct, incorrect, hallucinated (extractor emitted; truth null), missing (truth emitted; extractor null), correct_absent (both null). Accuracy percentages use correct / (correct + incorrect) — i.e., only replicates where both sides emit a value. Hallucination and missing counts are surfaced separately (orange/blue cells in the heatmaps, §5 in the appendix tables).
• Scalar scope. All top-level scalar fields declared in the UDM schema.
• Budget scope. The budget_categories array is compared by (code, subcode) — both sides already emit native UDM shape, so no label mapping is required. The top-level fees scalar is also scored. Nested objects (recipient_organization, current_budget_period) and other arrays (project_personnel, subawards, terms_and_conditions, special_conditions) remain out of scope for this pass.
• Normalization. Currency ($584,845 → 584845), percentages (50.0000% → 50.0), US dates (08/18/2025 → 2025-08-18) are coerced. "N/A", "", and null are all treated as null.

Comparison script: scripts/compare_to_vandalizer.py
Plotter: scripts/plot_vandalizer_heatmaps.py (in the prompt-library repo) reads summary.json and writes the PNGs under charts/. Regenerate with python scripts/plot_vandalizer_heatmaps.py --summary <path>/summary.json --mode json_schema.
